Overview

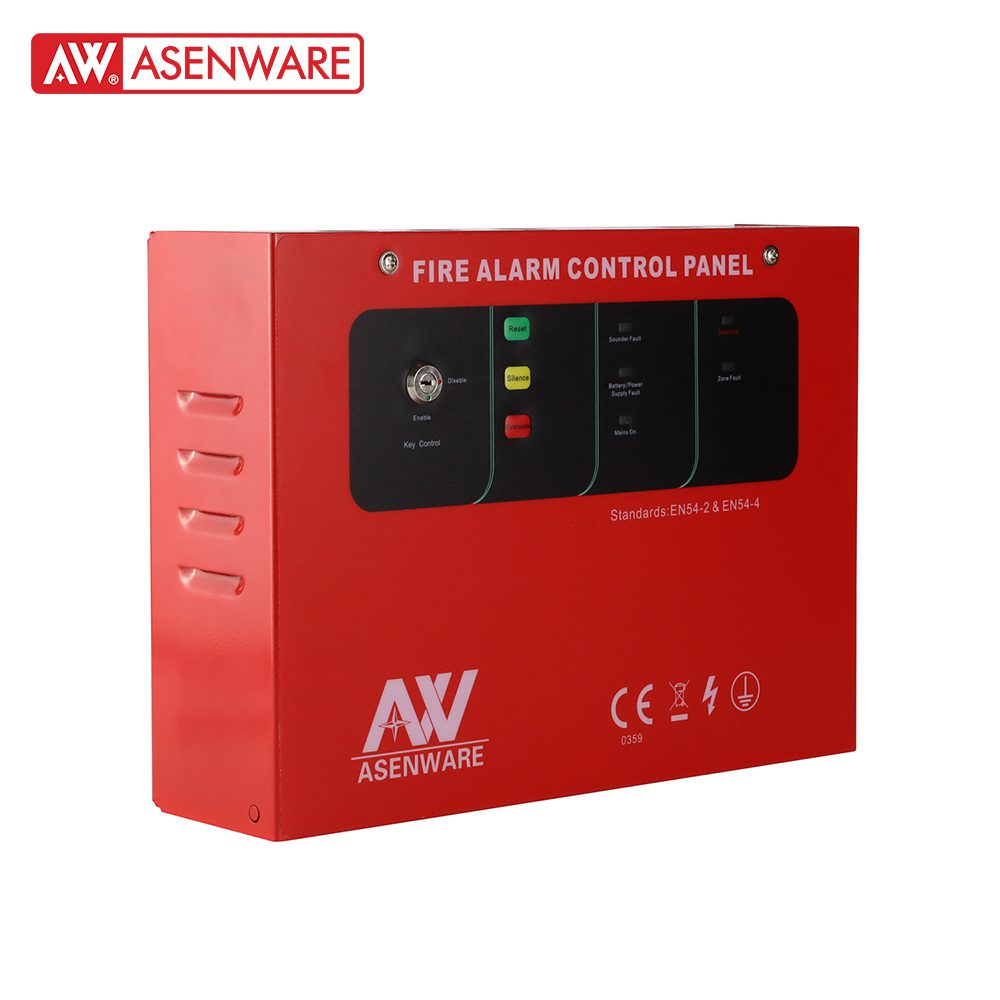

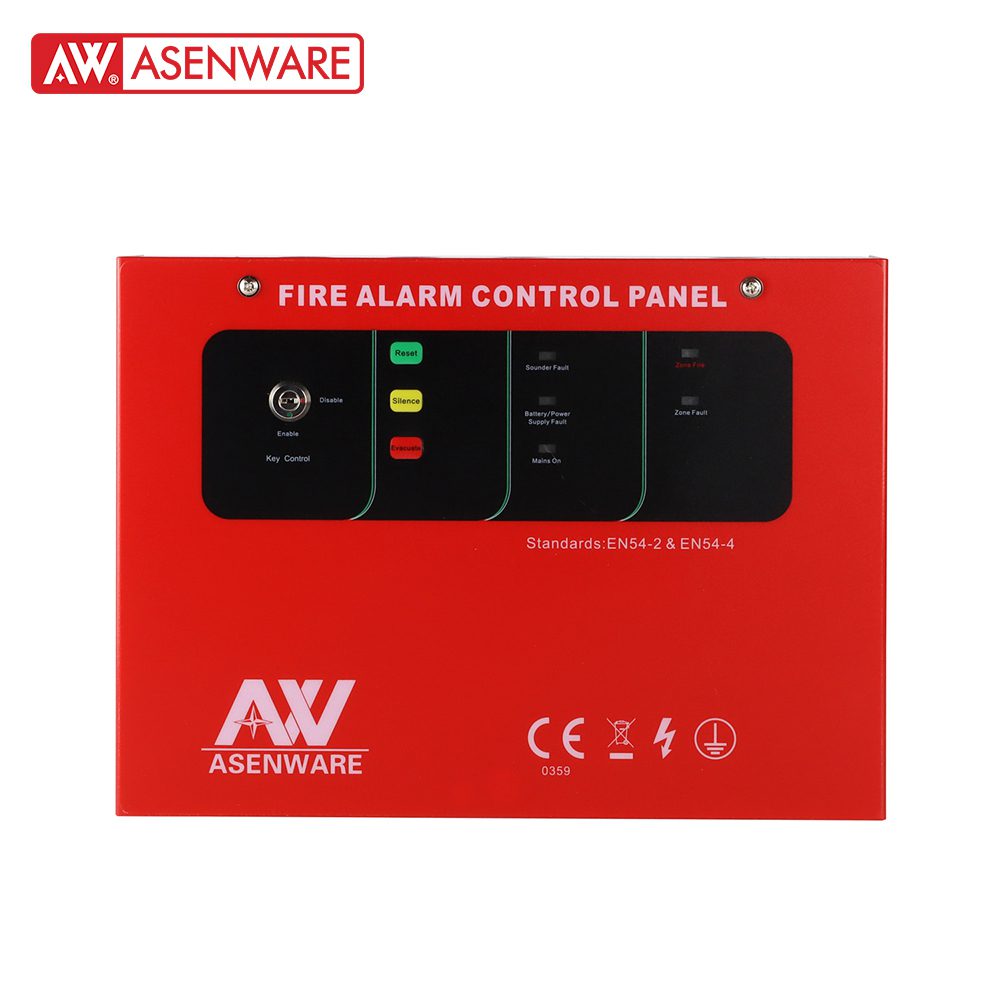

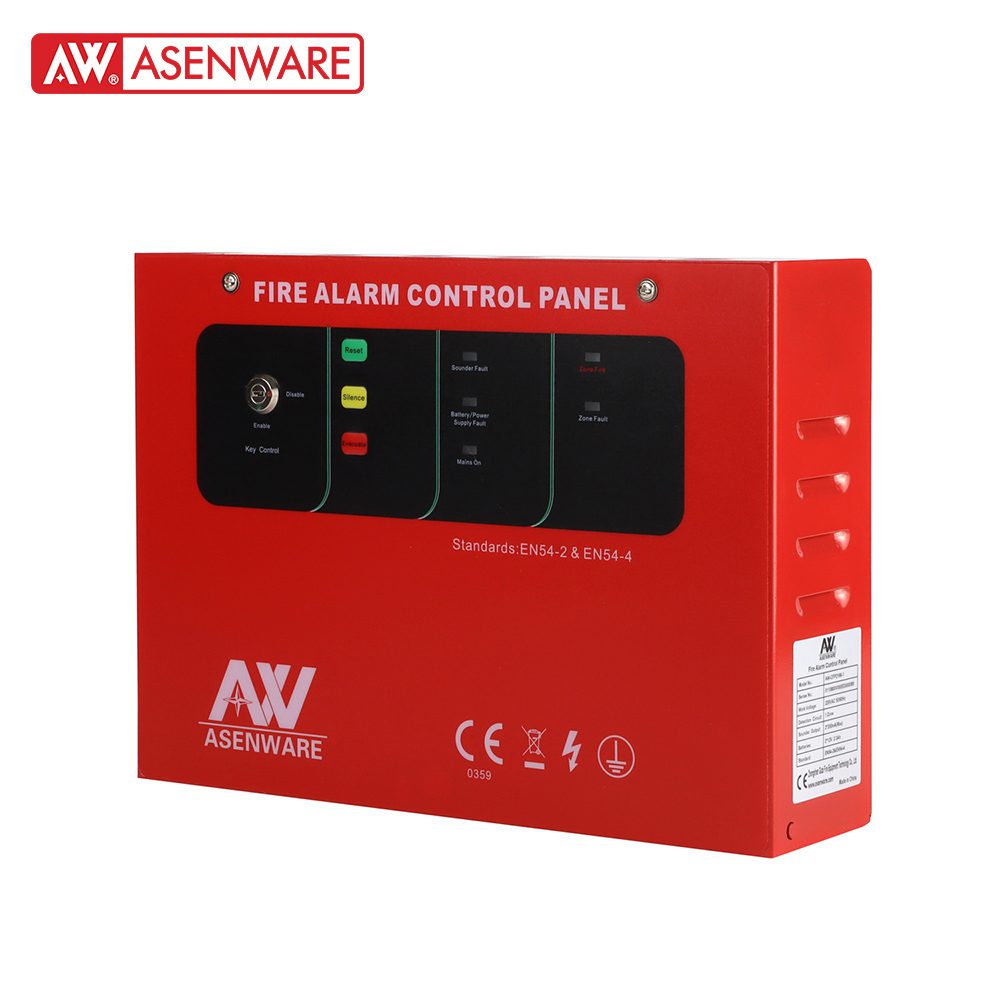

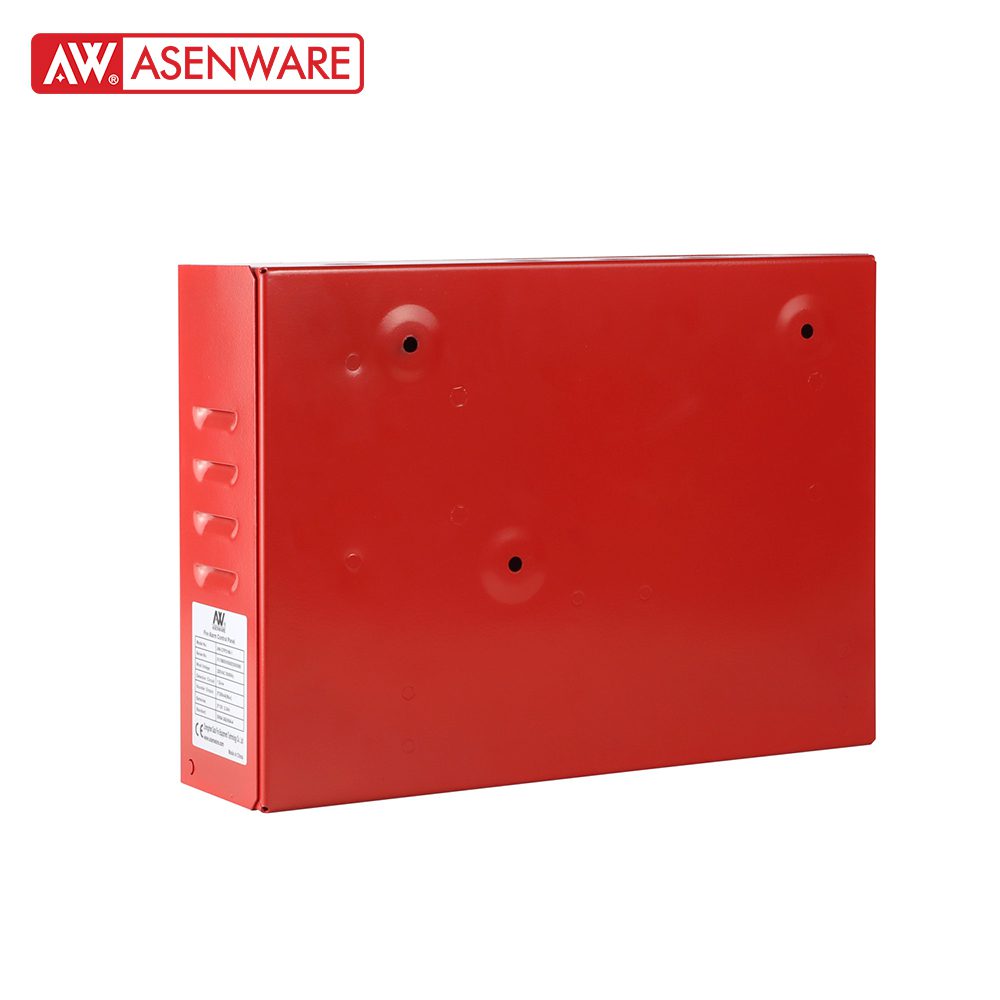

The AW-CFP2166-1 is a compact, high-performance 1-Zone Conventional Fire Alarm Control Panel designed in compliance with EN54-2/4 standards. Ideal for small installations, this panel centralizes system control while supplying power to connected detectors, manual call points, sounders, and alarm devices.
Key Features
-
Supports up to 20 detectors or MCPs on a single zone
-
Compact design with simplified installation
-
Fire and Fault relay outputs
-
Supports up to 4 bells per CIE
-
Built-in high-capacity backup battery system (2x 12V/2.3Ah)
-
Automatic switching between AC and standby power
-
Clear functional buttons and LED indicators for intuitive operation
-
Manual evacuation function and sounder silence option
-
Optional GSM module support for mobile notifications
Electrical & Mechanical Specs
-
AC Input: 220VAC 50/60Hz
-
DC Output: 24VDC typical
-
Max Detector Load per Zone: 20
-
Max Current Draw (24VDC): 1A
-
Battery Backup: 2 x 12V/2.3Ah
-
Relay Output: 1A/30VDC (Fire & Fault)
-
Sounder Output: 2 x 0.75A max
-
Communication: RS485 (2-wire bus)
-
Operating Temperature: -5°C to 50°C
-
Humidity: 5%–95% RH, non-condensing
Ideal For
Small commercial buildings, warehouses, offices, and other environments requiring a reliable single-zone fire alarm control unit.
