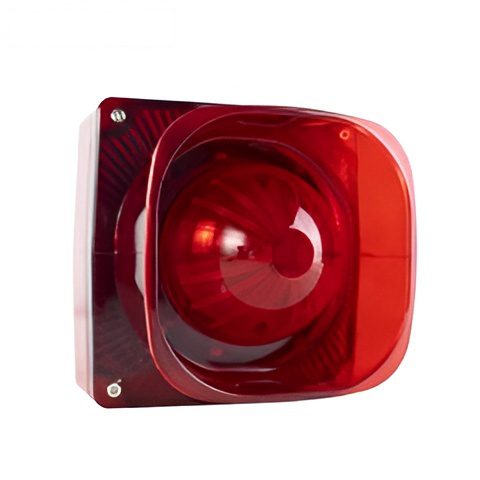

24V or 220V Conventional Fire Strobe Sounder AW-CSS2166-4

Product Overview

The AW-CSS2166-4 is a dual-voltage conventional fire alarm device that combines a high-decibel sounder with a powerful LED strobe. Featuring a folded horn design and advanced optics, this unit delivers strong visual and audible alerts at a low power draw — ideal for commercial and industrial fire protection systems.

Key Features

• Stable and reliable operation

• Easy installation and wiring

• Supports both sounder and strobe signals

• Adjustable Sound Pressure Level (SPL)

• 8 selectable alarm tones

• LED technology for low current consumption

Technical Specifications

• Model: AW-CSS2166-4

• Voltage: 12–28V DC or 220V AC (±10%)

• Max Current Draw: ≤110mA

• Sound Level: 95–115dB @ 1m (adjustable)

• Flash Rate: 120 flashes per minute

• Wiring:

  • AC: L/N terminals

  • DC: BELL+ / BELL– two-wire system

• Operating Temp: –10°C to 50°C

• Humidity: 5%–95% RH, non-condensing

• Material: ABS (Red)

• Size: 128 x 122 x 100 mm

• Weight: 320g

• Compatible With: Asenware Conventional & Addressable Panels

Note: Contact us for pricing and availability. Coming soon.
